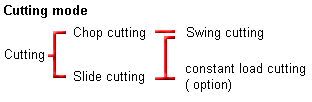

■Chop cutting in swinging mode makes cutting free from burn while constantly cutting water is fed to cutting surface and cooled. Also you can also cut complicated shaped specimen which is heat treated without any deformation due heat from cutting.
■Constant load cutting mechanism can be adopted as a option though, to detect the ampere and control the feeding speed. With this function cutting speed can be optimized following to variation of cutting surface.
■Shaft drive cutting wheel
Original design of shaft drive makes free from belt adjustment trouble. The wheel position can be set more in the center of the machine than belt drive type, more bigger or even longer material cutting at center is possible.
■Front cover
Transparency cover is used for upper part of front cover, easy of checking during cutting. While cover is full open type, you can set even heavy material carrying directly to vices by crane.
■Operation panel
With touch panel display, it is easy to set or change the cutting condition.
■Cutting table
In order to clamp various shape of specimen T ditch table is used. Manual vice is used for regular form specimen. AS a option for irregular from various clamping device is prepared such as powered vice, y axes slide , magnetic slide etc.
Vertical cut of column
Slice cut of column
Cut of cylinder
